JBL 4309 Monitor

€2.399,00

✅ free shipping*


Book a demo in the shop

Estimated within the next week.

*subject to product,location and ordered amount

Please contact us to purchase products with a price higher than €4000. Call us on +32 (0)9 3 916 916 or email us at info@widescreenaudio.be. We're happy to answer all your questions.

SKU: 210000019150 Categories: , , , , ,

JBL 4309 2-way Bookshelf Loudspeaker

Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the 4309 Studio Monitor is a showcase of patented JBL acoustics technologies. This bookshelf loudspeaker features a 2-way design with patented High-Definition Imaging (HDI™) horn technology, the patented 2410H-2 1-inch (25mm) compression driver, and a 6.5-inch (165mm) cast-frame, Pure-pulp cone woofer for powerful dynamics and incredibly accurate sound reproduction.

Features

  • Patented 2410H-2 1″ (25mm) compression driver with High Definition Imaging ™ geometry horn.
  • 6.5-inch (165mm) pure-pulp cone woofer in bass-reflex design with dual front-firing tuned ports.
  • Choice of Satin Walnut or Black Walnut furniture-grade satin wood veneers.

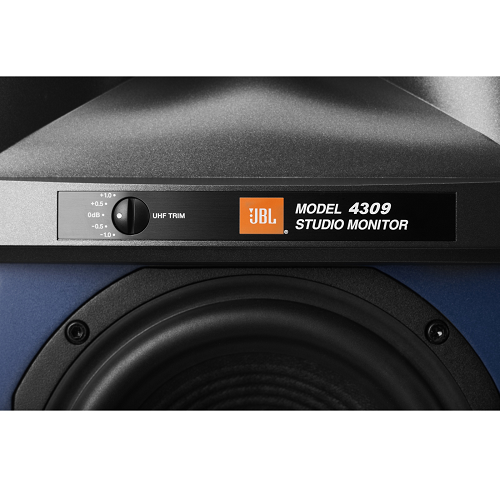

Ultra high-frequency level attenuator

JBL 4309 Ultra High-frequency level attenuator. - Image

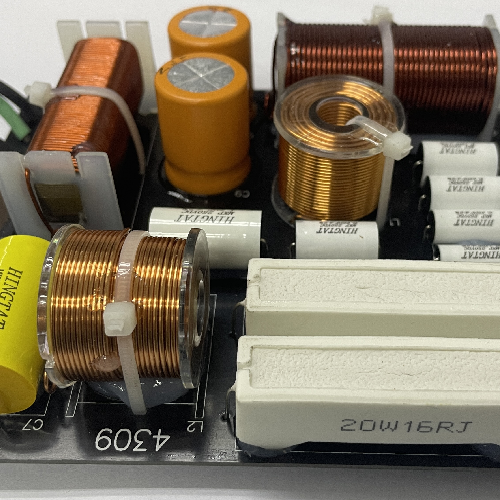

Advanced crossover network

JBL 4309 Advanced crossover network. - Image

Specifications

Type: 2-way bookshelf loudspeaker

Low Frequency Driver: 6.5″ (165mm) Pure Pulp cone woofer

High Frequency Driver: 2410H-2 1-inch (25mm) annular ring, Teonex® diaphragm compression driver with advanced HDI™ geometry horn

Recommended Amplifier Power: 25 – 150 WRMS

Impedance: 4 Ohm

Loudspeaker Sensitivity: 87 dB/2.83V/1m

Frequency Response: 42 Hz – 30 kHz (-6 dB)

Coverage Angle, -6 dB100 Degrees Hor. x 80 Degrees Ver., from 2kHz to 17kHz

Crossover Frequency: 1.6 kHz

Enclosure Type: H-braced front-ported bookshelf

Grille:Monitor style to match horn mating features, supplied in dark blue (with walnut cabinet) and black (with black cabinet)

Dimensions with grille: 16.5” H x 10.25” W x 9” D (419 mm H x 260 mm W x 227 mm D)

Controls: UHF tone controlInput

Type: Dual sets of gold-plated binding posts with shorting straps

Product Weight: (Each)24.2 lbs. (10.98 kg)

Shipping Weight: 56.2 lbs. (25.5 kg)Shipping

Units of Measure: Pair

Warranty: 5 Years

Recommended stand height: 24” (609 mm)
